RLT650-500-T - Laser Diode

Roithner

📥 Download Datasheet

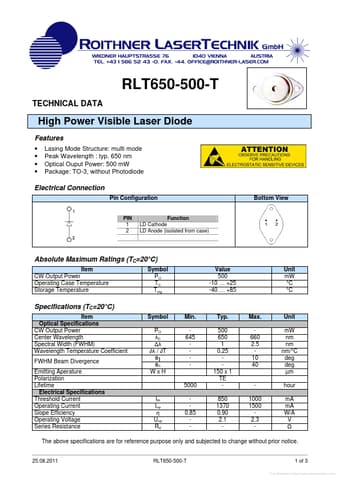

RLT650-500-T Datasheet Preview — Preview of RLT650-500-T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RLT650-500-T
Manufacturer	Roithner
File Size	159.92 KB
Description	Laser Diode
Datasheet	RLT650-500-T_Roithner.pdf

RLT650-500-T Product details

Features

Lasing Mode Structure: multi mode Peak Wavelength : typ. 650 nm Optical Ouput Power: 500 mW Package: TO-3, without Photodiode Electrical Connection Pin Configuration Bottom View PIN 1 2 Function LD Cathode LD Anode (isolated from case) Absolute Maximum Ratings (TC=20°C) Item CW Output Power Operating Case Temperature Storage Temperature Symbol PO TC Tstg Value 500 -10 … +25 -40 … +85 Unit mW °C °C Specifications (TC=20°C) Item Optical Specifications C.
