RU80100R - N-Channel Advanced Power MOSFET

Ruichips

The RU80100R by Ruichips is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

RU80100R N-Channel Advanced Power MOSFET by Ruichips - Datasheet Preview — Official preview page of the **RU80100R** N-Channel Advanced Power MOSFET datasheet (Ruichips).

Datasheet Details

Part number	RU80100R
Manufacturer	Ruichips
File Size	485.48 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU80100R-Ruichips.pdf
Additional preview pages of the RU80100R datasheet.

RU80100R Product details

Description

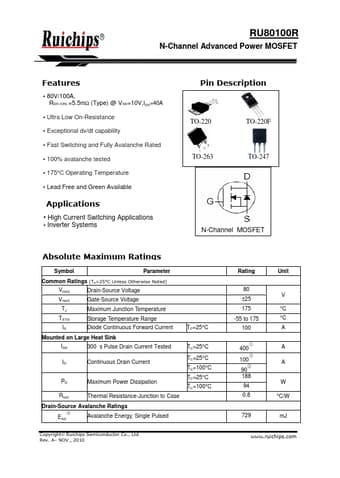

TO-220 TO-263 TO-220F TO-247 N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink IDP 300μs Pulse Drain Current Tested ID Continuous Drain Current PD Maximum Power Dissipation RθJC Thermal Resistance-Junction to Case Drain-Source Avalanche Ratings

Features

80V/100A, RDS (ON) =5.5mΩ (Type) @ VGS=10V,IDS=40A.
Ultra Low On-Resistance.
Exceptional dv/dt capability.
Fast Switching and Fully Avalanche Rated.
100% avalanche tested.
175°C Operating Temperature.
Lead Free and Green Available.
