DKI03062 - N-Channel MOSFET

Datasheet Summary

Features

  • V(BR)DSS --------------------------------- 30 V (ID = 100 µA).
  • ID ---------------------------------------------------------- 48 A.
  • RDS(ON) ------------ 6.5 mΩ max. (VGS = 10 V, ID = 31 A).
  • Qg------- 9.3 nC (VGS = 4.5 V, VDS = 15 V, ID = 39.5 A).
  • Low Total Gate Charge.
  • High Speed Switching.
  • Low On-Resistance.
  • Capable of 4.5 V Gate Drive.
  • 100 % UIL Tested.
  • RoHS Compliant Package TO-252 (4) D (1) (2) (3) GDS (3) (2) (1) SDG.

📥 Download Datasheet

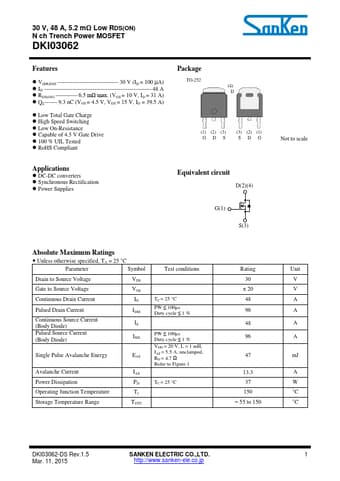

Datasheet preview – DKI03062

Datasheet Details

Part number DKI03062
Manufacturer Sanken
File Size 684.78 KB
Description N-Channel MOSFET
Datasheet download datasheet DKI03062 Datasheet
Additional preview pages of the DKI03062 datasheet.

📁 Similar Datasheet

Other Datasheets by SANKEN
  • DKI03038 - N Channel Trench Power MOSFET
  • DKI03082 - N Channel Trench Power MOSFET
  • DKI04035 - N Channel Trench Power MOSFET
  • DKI04046 - N Channel Trench Power MOSFET
  • DKI04077 - N Channel Trench Power MOSFET
  • DKI04103 - N Channel Trench Power MOSFET
  • DKI06075 - N Channel Trench Power MOSFET
  • DKI06108 - N Channel Trench Power MOSFET

Full PDF Text Transcription

Click to expand full text
30 V, 48 A, 5.2 mΩ Low RDS(ON) N ch Trench Power MOSFET DKI03062 Features  V(BR)DSS --------------------------------- 30 V (ID = 100 µA)  ID ---------------------------------------------------------- 48 A  RDS(ON) ------------ 6.5 mΩ max. (VGS = 10 V, ID = 31 A)  Qg------- 9.3 nC (VGS = 4.5 V, VDS = 15 V, ID = 39.5 A)  Low Total Gate Charge  High Speed Switching  Low On-Resistance  Capable of 4.
