version:V1.2 SANYOU RELAYS Relays for advanced technology Photovoltaic Relay SLE-Series .
Features
* Miniature relay with high switching capability：35A.
* Contact form：Form A，contact Gap>1.8mm .
* 4000VAC dielectric strength high and 6000V surge
voltage (1.2/50 uS) between coil and contact .
* Product in accordance to IEC60335-1 and PTI>=325.
* The appliance is able to meet VD
Applications
* Photovoltaic controller，Charging pile，New energy automobile

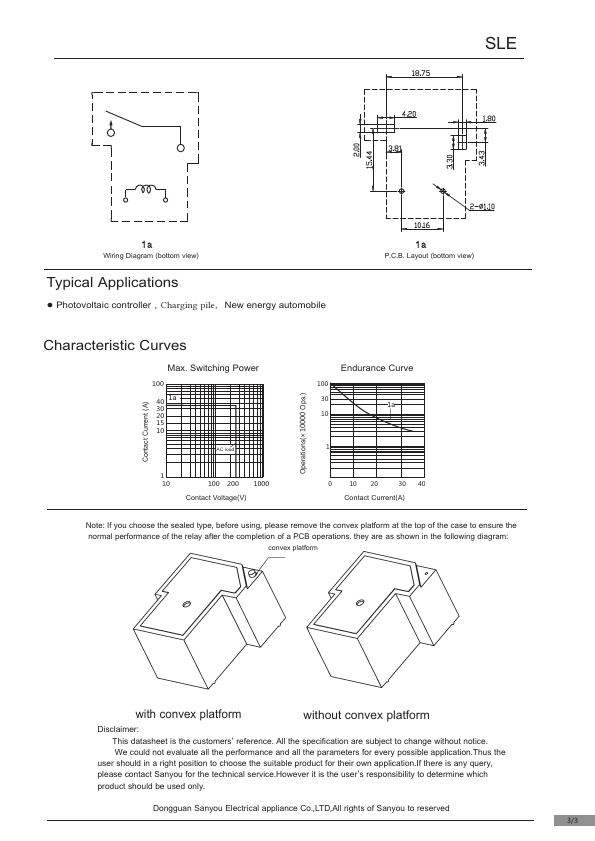

P. C. B. Layout (bottom view)
Contact Current (A) Operations(×10000 Ops!. )
Characteristic Curves
Max. Switching Power
100
1a 40 30 20
!
15 10
AC &load
&
1 10
100 200 1000
Contact Voltage(V)
Endurance Curve
100 30 1a 10
!
1
0
