Part number: SF188R1
Manufacturer: SCHOTT
File Size: 1.02MB
Download: 📄 Datasheet
Description: SEFUSE Thermal Links
Image gallery
TAGS
📁 Related Datasheet
SF188R0 - SEFUSE Thermal Links
(SCHOTT)
6

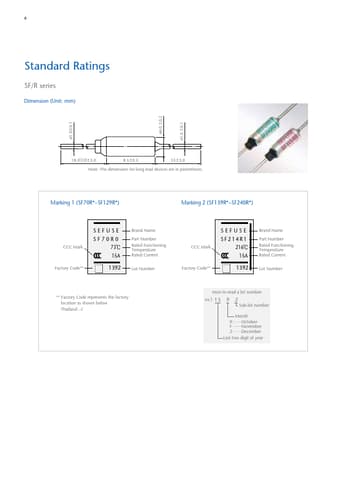

Standard Ratings
SF/R series
Dimension (Unit: mm)
ø1.0 ±0.1 ø4.0 ±0.2
ø1.0 ±0.1
18.5(33)±3.0
8.5±0.5
33±3.0
Note: The dimensions for long lead .
SF188R0 - Thermal Cutoffs SEFUSE
(NEC)
Dimension
NEC SCHOTT Thermal Cutoffs SEFUSE®
SF/R Series Specification
Marking
Feature Higher Tm rating & Quicker responsiveness ROHS and REACH com.
SF188E - ORGANIC THERMAL SENSITIVE PELLET TYPE 10 AMPERES RATED CURRENT
(NEC)
DATA S H E E T
Thermal Cutoff SEFUSETM
SF/E SERIES
ORGANIC THERMAL SENSITIVE PELLET TYPE 10 AMPERES RATED CURRENT
NEC's thermal cutoff SE/E series .
