SCT2401F

600mA Synchronous Step-down DCDC Converter

SCT2401F Features

* Wide Input Range: 4.5V-40V

* Up to 600mA Continuous Output Current

* 0.81V ± 2.5% Feedback Reference Voltage

* Integrated 600mΩ High-Side and 300mΩ Low- Side Power MOSFETs

* Fixed Frequency 1.2MHz

* Force Pulse Width Modulation (FPWM) Mode

* 80ns Minimum On-time

* 1

SCT2401F General Description

The SCT2401F is a high frequency, up to 600mA continuous output synchronous buck converter. It has wide input voltage rating from 4.5V to 40V, which integrates a 600mΩ high-side MOSFET and a 300mΩ low-side MOSFET. The SCT2401F, adopts the peak current mode control with built-in loop compensation to .

SCT2401F Datasheet (1.56 MB)

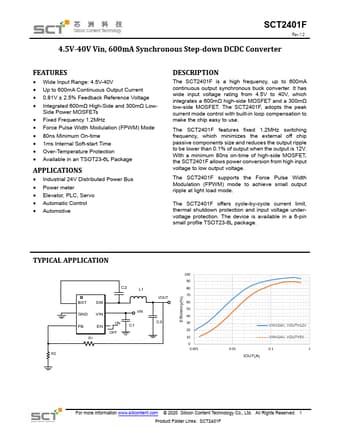

Preview of SCT2401F PDF

Datasheet Details

Part number:

SCT2401F

Manufacturer:

SCT

File Size:

1.56 MB

Description:

600ma synchronous step-down dcdc converter.
