SCT2430

High Efficiency Synchronous Step-down DCDC Converter

SCT2430 Features

* Wide Input Range: 3.8V-40V

* Up to 3.5A Continuous Output Current

* 0.8V ±1% Feedback Reference Voltage

* Integrated 80mΩ High-Side and 50mΩ Low-Side Power MOSFETs

* Pulse Skipping Mode (PSM) with 25uA Quiescent Current in Sleep Mode

* 100ns Minimum

SCT2430 General Description

The SCT2430 is 3.5A synchronous buck converters with wide input voltage, ranging from 3.8V to 40V, which integrates an 80mΩ high-side MOSFET and a 50mΩ low-side MOSFET. The SCT2430, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) with typical 25uA low quiescent c.

SCT2430 Datasheet (967.97 KB)

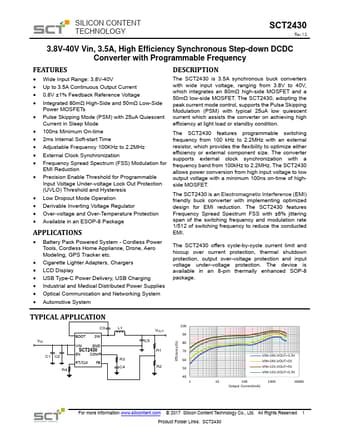

Preview of SCT2430 PDF

Datasheet Details

Part number:

SCT2430

Manufacturer:

SCT

File Size:

967.97 KB

Description:

High efficiency synchronous step-down dcdc converter.
SILICON CONTENT TECHNOLOGY SCT2430 Rev.1.3 3.8V-40V Vin, 3.5A, High Efficiency Synchronous Step-down DCDC Converter with Programmable Frequency FEA.
