SDC606P Current Mode PWM Controller

SDC606P Description

Current Mode PWM Controller Datasheet SDC606P General .
Features SDC606P is a high-performance current mode control IC T designed for AC/DC convertor, which supplies about continuous 12W output power at t.

SDC606P Features

* SDC606P is a high-performance current mode control IC T designed for AC/DC convertor, which supplies about continuous 12W output power at the universal AC input CONFIDENTIAL DOCUMEN range from 85V to 265V.
* Built-in oscillator
* Built-in high voltage power transistor of 700V
* High vo

SDC606P Applications

* Portable rechargeable power supply
* Appliance controller power supply
* Adaptor/charger for cell and other portable apparatus
* DVD/DVB power supply, ATX standby power supply SDC DIP-8 Figure 1. Package Type December, 2013 Rev. 1.2 ©2013 Shaoxing Devechip Microelectronics Co. ,

📥 Download Datasheet

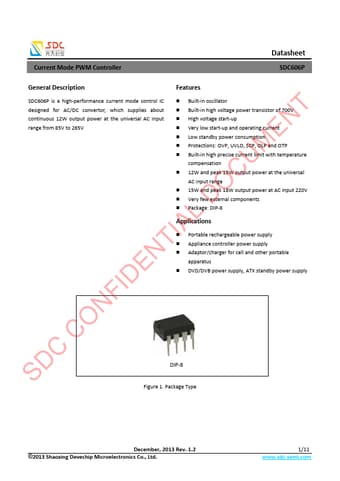

Preview of SDC606P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDC606P
Manufacturer
SDC
File Size
354.29 KB
Datasheet
SDC606P-SDC.pdf
Description
Current Mode PWM Controller
