SS248

CMOS Omnipolar High Sensitivity Micropower Hall Switch

SS248 Features

*     Micropower consumption for battery powered applications Omnipolar, output switches with absolute value of North or South pole from magnet Operation down to 2.5V High sensitivity for direct reed switch replacement applications 3 pin SOT23 (suffix SO) 3 pin SIP (suffix UA) Chopper stabilize

SS248 General Description

The S248 Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology .It incorporates advanced chopper-stabilization techniques to provide accurate and stable magnetic switch points. The circuit design provides an internally controlled clocking mechanism to cycle power to the Hal.

SS248 Datasheet (573.93 KB)

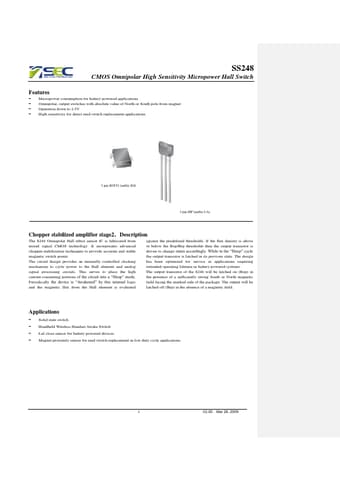

Preview of SS248 PDF

Datasheet Details

Part number:

SS248

Manufacturer:

SEC Electronics

File Size:

573.93 KB

Description:

Cmos omnipolar high sensitivity micropower hall switch.
