SIOPSV1

Current Sensors

SIOPSV1 Features

* Open loop transducer using the Hall effect Low voltage application Unipolar +5V DC power supply Primary current measuring range up to ±10.. ±30A

* Operating temperature range:-40℃< T A

SIOPSV1 General Description

For the electronic measurement of currents: DC, AC, pulsed. 1 V2.00 May 1, 2012 Datasheet pdf - http://www.DataSheet4U.co.kr/   SIOPSV1 Current Sensors Parameters Table PARAMETERS Min. Max. Electrical data VC V 4.5 5 5.5 IC mA 9.2 12 R IS MΩ 4.7 RL KΩ 4.7 RL KΩ 4.7 CL nF 10 V c /5 (2.5+0.2×I p )@.

SIOPSV1 Datasheet (354.62 KB)

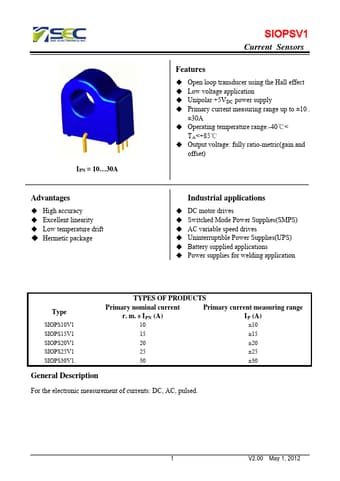

Preview of SIOPSV1 PDF

Datasheet Details

Part number:

SIOPSV1

Manufacturer:

SEC

File Size:

354.62 KB

Description:

Current sensors.
