SIOT1SV2 Current Sensors

SIOT1SV2 Description

  SIOT1SV2 Current Sensors .
For the electronic measurement of currents : DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit and the secondary circuit.

SIOT1SV2 Features

* Galvanic isolation between primary and secondary circuit
* Hall effect measuring principle
* Isolation voltage 3000V
* Low power consumption
* Extended measuring range(3
* I PN )
* Power supply from ±12V to ±15V Advantages
* Low insertion losses
* Easy to mount

SIOT1SV2 Applications

* DC motor drives Switched Mode Power Supplies(SMPS) AC variable speed drives Uninterruptible Power Supplies(UPS) Battery supplied applications Power supplies for welding application Type SIOT1S10V2 SIOT1S15V2 SIOT1S20V2 SIOT1S25V2 SIOT1S30V2 TYPES OF PRODUCTS Primary nominal current Primary current

📥 Download Datasheet

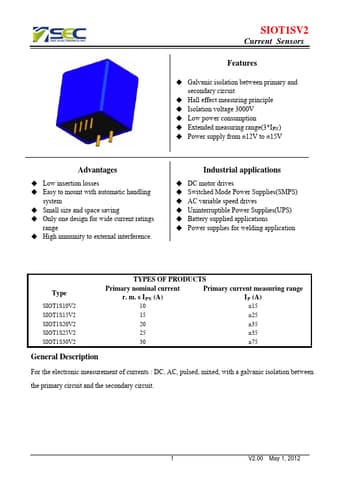

Preview of SIOT1SV2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SIOT1SV2
Manufacturer
SEC
File Size
288.44 KB
Datasheet
SIOT1SV2_SEC.pdf
Description
Current Sensors
