SS1344 - Unipolar Hall Switch-Low Sensitivity

SS1344 Description

SS1344 Unipolar Hall Switch-Low Sensitivity .
The SS1344 is a unipolar Hall-effect sensor IC fabricated from CMOS technology.

SS1344 Features

* 3.5V to 24V Operation
* -40°C to 150°C Superior temperature operation
* CMOS technology
* Low current consumption
* Chopper-stabilized amplifier stage
* Open drain output
* Low sensitivity
* Small Size SOT23 3L or SIP 3L
* bot

SS1344 Applications

* The device is delivered in a Small Outline Transistor (SOT) or in a Plastic Single In Line (SIP 3L flat). Both 3-lead packages are RoHS compliant. Glossary of Terms MilliTesla (mT), Gauss RoHS Operating Point (BOP) Release Point (BRP) Units of magnetic flux density: 1mT = 10 Gauss Restriction of

📥 Download Datasheet

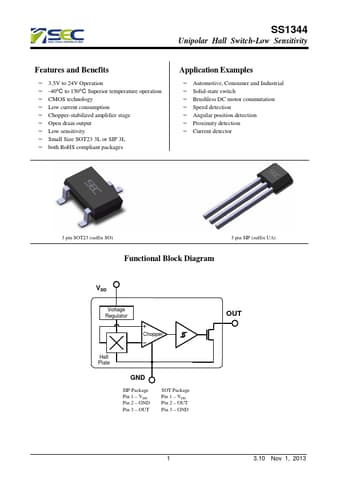

Preview of SS1344 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS1344
Manufacturer
SEC
File Size
243.24 KB
Datasheet
SS1344-SEC.pdf
Description
Unipolar Hall Switch-Low Sensitivity
