SS41FLSOT - Hall Latch Position Sensor

Product Overview

SEC

📥 Download Datasheet

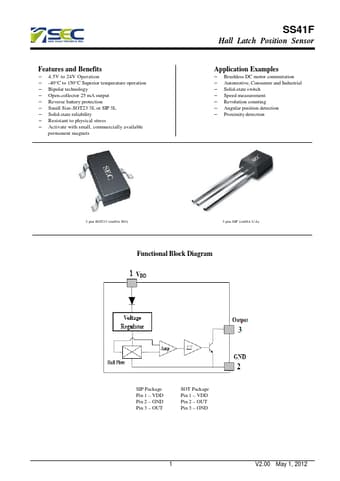

SS41FLSOT Hall Latch Position Sensor by SEC - Datasheet Preview — Datasheet preview – SS41FLSOT

Datasheet Details

Part number	SS41FLSOT
Manufacturer	SEC
File Size	196.43 KB
Description	Hall Latch Position Sensor
Datasheet	SS41FLSOT Datasheet
Note	This datasheet PDF includes multiple part numbers: SS41FLSOT, SS41F. Please refer to the document for exact specifications by model.
Additional preview pages of the SS41FLSOT datasheet.

Product details

Description

The SS41F is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications.

Features

4.5V to 24V Operation.
-40°C to 150°C Superior temperature operation.
Bipolar technology.
Open-collector 25 mA output.
Reverse battery protection.
Small Size-SOT23 3L or SIP 3L.
Solid-state reliability.
Resistant to physical stress.
Activate with small, commercially available permanent magnets SS41F Hall Latch Position Sensor.
