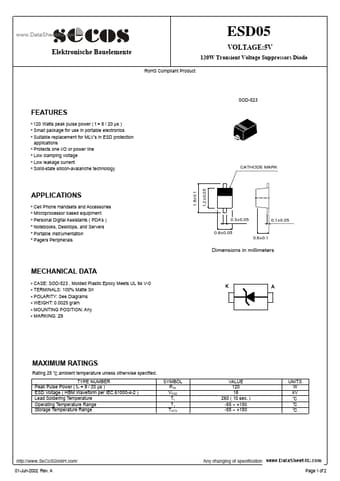

ESD05 Datasheet, Diode, SECOS

ESD05 Features

• Diode
• 120 Watts peak pulse power ( t = 8 / 20 µs )
• Small package for use in portable electronics
• Suitable replacement for MLV’s in ESD protection applications <

PDF File Details

Part number:

ESD05

Manufacturer:

SECOS

File Size:

274.15kb

Download:

📄 Datasheet

Description:

120w transient voltage suppressors diode.

ESD05 Application

• Applications
• Protects one I/O or power line
• Low clamping voltage
• Low leakage current
• Solid-state silicon-av
