HTS6A80H

3 Quadrants Standard TRIAC

HTS6A80H Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 6A)  Gate Trigger Current : 25mA  High commutation capability. VDRM = 600V/800V IT(RMS) = 6 A ITSM = 63 A IGT = 25mA Symbol TO-220F Applications General purpose of AC switching, heating control, motor con

HTS6A80H General Description

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application Absolute Maximum Ratings Symbol Parameter VDRM VRRM IT.

HTS6A80H Datasheet (362.62 KB)

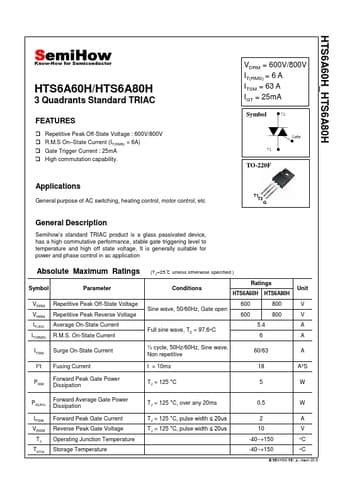

Preview of HTS6A80H PDF

Datasheet Details

Part number:

HTS6A80H

Manufacturer:

SEMIHOW

File Size:

362.62 KB

Description:

3 quadrants standard triac.
