RS3JF Datasheet - SEMIPOWER

Surface Mount Fast Recovery Rectifiers

RS3JF Features

* For surface mounted applications

* Low profile package

* Glass Passivated Chip Juntion

* Easy to pick and place

* Fast reverse recovery time

* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA

* Case: SMAF

* Termi

RS3JF General Description

1 Cathode 2 Anode 12 Top View Marking Code： RS3A-RS3M Simplified outline SMAF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 2.

RS3JF Datasheet (190.17 KB)

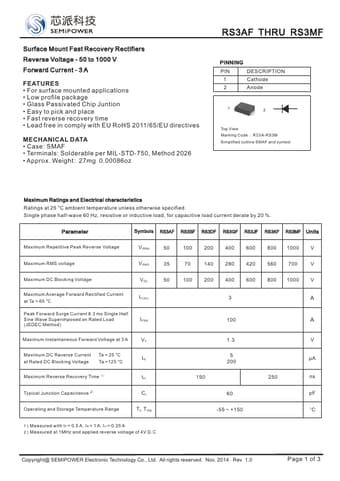

Preview of RS3JF PDF

Datasheet Details

Part number:

RS3JF

Manufacturer:

SEMIPOWER

File Size:

190.17 KB

Description:

Surface mount fast recovery rectifiers.
