RS3JC, RS3AC - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number: RS3JC, RS3AC
Manufacturer: Sunmate
File Size: 111.58 KB
Datasheet: RS3AC-Sunmate.pdf
Description: SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: RS3JC, RS3AC.
Please refer to the document for exact specifications by model.

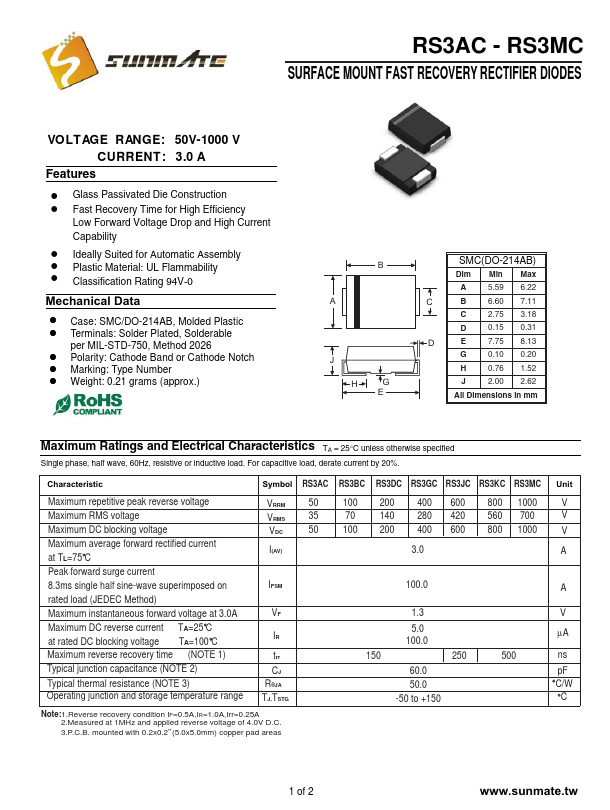

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A J H G E SMC(DO-214AB) Dim Min Max A.
