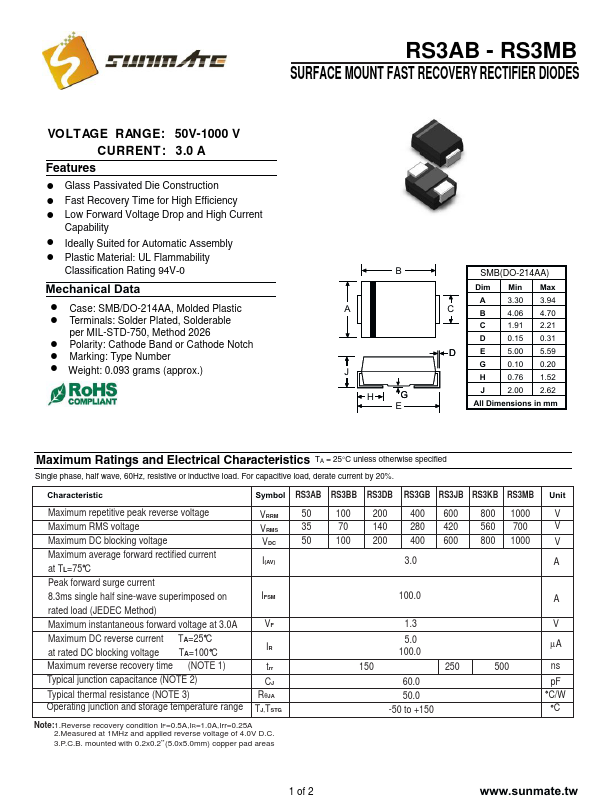

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current
Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability
Classification Rating 94V-0
Mechanical Data
! Case: SMB/DO-214AA, Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx. )
B A
J
H
G
E
SMB(DO-214AA)
Dim Min Max.
