RS3DB, RS3AB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Description

RS3AB - RS3MB SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 3.0 A .

📥 Download Datasheet

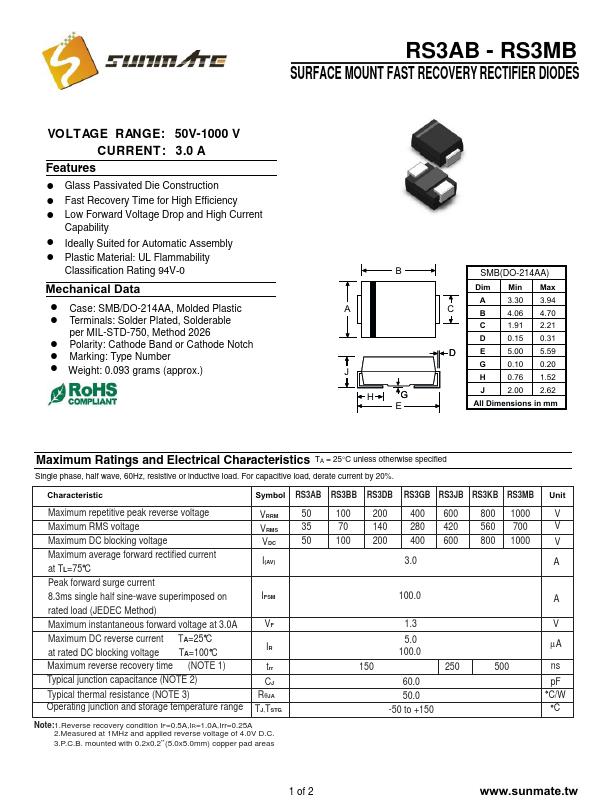

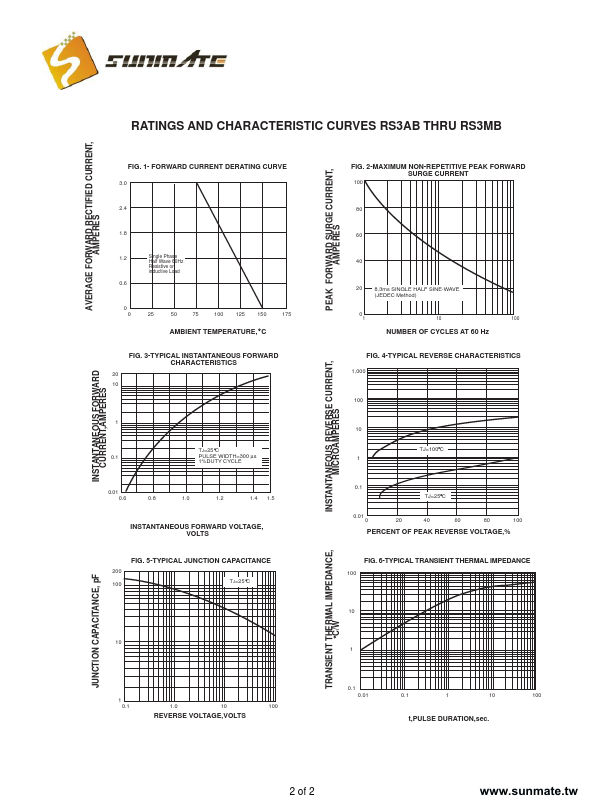

RS3DB Datasheet Preview — This datasheet PDF includes multiple part numbers: RS3DB, RS3AB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS3DB, RS3AB
Manufacturer: Sunmate
File Size: 118.49 KB
Datasheet: RS3AB-Sunmate.pdf
Description: SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: RS3DB, RS3AB.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB/DO-214AA, Molded Plastic ! Terminals
