S15KW, S15AW Datasheet - SEMIPOWER

S15KW Surface Mount General Purpose Silicon Rectifiers

1 Cathode 2 Anode 12 Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Parameter Symbols S15.

S15KW Features

* ▪For surface mounted applications ▪Low profile package ▪Glass Passivated Chip Juntion ▪Ideal for automated placement ▪Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA ▪Case: SOD-123FL ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪Approx. Weight:15mg 0.00048oz S15AW THRU

S15AW-SEMIPOWER.pdf

This datasheet PDF includes multiple part numbers: S15KW, S15AW. Please refer to the document for exact specifications by model.

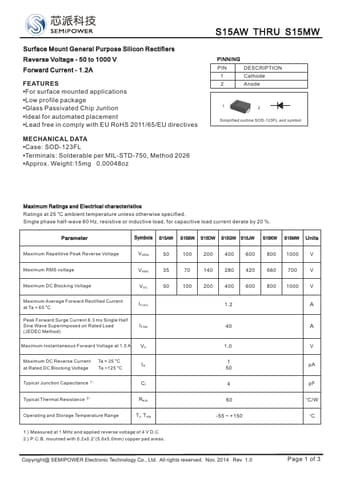

S15KW Datasheet Preview Page 2 S15KW Datasheet Preview Page 3

Datasheet Details

Part number:

S15KW, S15AW

Manufacturer:

SEMIPOWER

File Size:

166.66 KB

Description:

Surface mount general purpose silicon rectifiers.

Note:

This datasheet PDF includes multiple part numbers: S15KW, S15AW.
Please refer to the document for exact specifications by model.
