S150JR

Silicon Standard Recovery Diode

S150JR Features

* High Surge Capability

* Types from 600 V to 1200 V VRRM

* Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S150J thru S150QR VRRM = 600 V - 1200 V IF =150 A AC DO-8 Package CA Stud Stud (R) Maximum

S150JR Datasheet (762.99 KB)

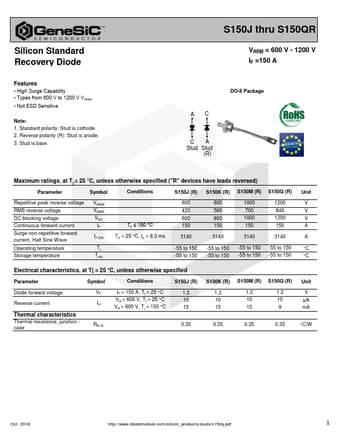

Preview of S150JR PDF

Datasheet Details

Part number:

S150JR

Manufacturer:

GeneSiC

File Size:

762.99 KB

Description:

Silicon standard recovery diode.
