S150M, S150J Datasheet - GeneSiC

S150M Silicon Standard Recovery Diode

S150M Features

* High Surge Capability

* Types from 600 V to 1200 V VRRM

* Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S150J thru S150QR VRRM = 600 V - 1200 V IF =150 A AC DO-8 Package CA Stud Stud (R) Maximum

S150J-GeneSiC.pdf

This datasheet PDF includes multiple part numbers: S150M, S150J. Please refer to the document for exact specifications by model.

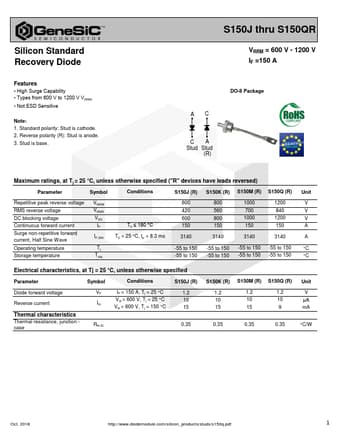

S150M Datasheet Preview Page 2 S150M Datasheet Preview Page 3

Datasheet Details

Part number:

S150M, S150J

Manufacturer:

GeneSiC

File Size:

762.99 KB

Description:

Silicon standard recovery diode.

Note:

This datasheet PDF includes multiple part numbers: S150M, S150J.
Please refer to the document for exact specifications by model.
