S150Q, S150J - Silicon Standard Recovery Diode

Name: S150Q
SKU: S150Q-1386940

GeneSiC

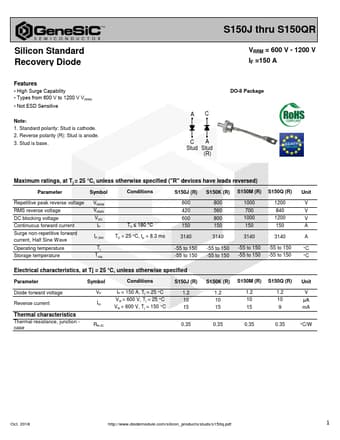

The S150Q by GeneSiC is a Silicon Standard Recovery Diode. Below is the official datasheet preview.

Datasheet Details

Part number	S150Q, S150J
Manufacturer	GeneSiC
File Size	762.99 KB
Description	Silicon Standard Recovery Diode
Datasheet	S150J-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: S150Q, S150J. Please refer to the document for exact specifications by model.
Additional preview pages of the S150Q datasheet.

High Surge Capability.
Types from 600 V to 1200 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S150J thru S150QR VRRM = 600 V - 1200 V IF =150 A AC DO-8 Package CA Stud Stud (R) Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions S150J (R) S150K (R) S150M (R) S150Q (R) Repetitive peak reverse voltage RMS revers.
