SS26F

Surface Mount Schottky Barrier Rectifier

SEMIPOWER

SS26F Features

* Metal silicon junction, majority carrier conduction

* For surface mounted applications

* Low power loss, high efficiency

* High forward surge current capability

* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applic

SS26F General Description

1 Cathode 2 Anode 12 Top View Marking Code: SS22

* SS220 Simplified outline SMAF and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load,.

SS26F Datasheet (220.80 KB)

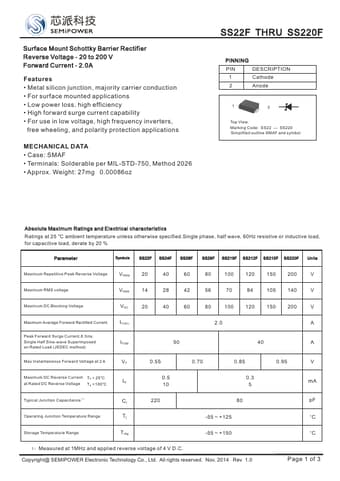

SS26F Datasheet Preview — Preview of SS26F PDF

Datasheet Details

Part number:

SS26F

Manufacturer:

SEMIPOWER

File Size:

220.80 KB

Description:

Surface mount schottky barrier rectifier.
