25TTS16 Datasheet, Rectifiers, SEMIWILL

25TTS16 Features

  • Rectifiers
  • Repetitive Peak Off-State Voltage : 1600V
  • R.M.S On-State Current ( IT(RMS)= 25 A )
  • Low On-State Voltage (1.7V(Max.)@ ITM)
  • RoHS Compliant K AG TO

PDF File Details

Part number:

25TTS16

Manufacturer:

SEMIWILL

File Size:

87.28kb

Download:

📄 Datasheet

Description:

Silicon controlled rectifiers. The 25TTS16 SCR is suitable to fit modes of control found in applications such as voltage regulation circuits for motorbikes,over-vol

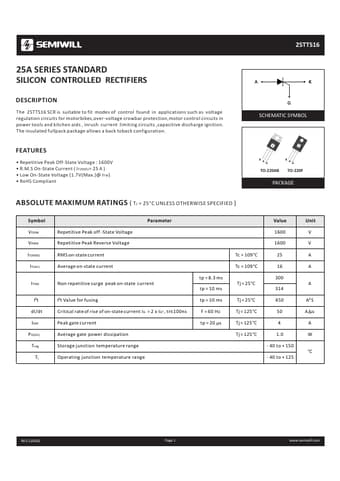

Datasheet Preview: 25TTS16 📥 Download PDF (87.28kb)
Page 2 of 25TTS16 Page 3 of 25TTS16

25TTS16 Application

  • Applications such as voltage regulation circuits for motorbikes,over-voltage crowbar protection,motor control circuits in power tools and kitchen ai
