SESMC05 Datasheet, Array, SEMIWILL

SESMC05 Features

  • Array >350 Watts Peak Pulse Power per Line (tp=8/20µs) >Ultra low leakage: uA level >Operating voltage: 3.3V,5V,8V,12V,15V,18V,24V,36V >Low clamping voltage >Weight: 8.0mg SOT-23 PACKAGE AP

PDF File Details

Part number:

SESMC05

Manufacturer:

SEMIWILL

File Size:

621.97kb

Download:

📄 Datasheet

Description:

Standard capacitance tvs diode array. The SESMCxx is a standard capacitance transient voltage suppressor array,designed to protect applications such as portable electronic

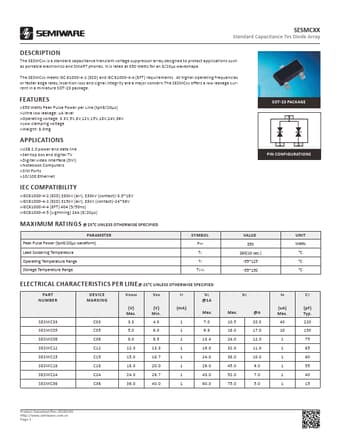

Datasheet Preview: SESMC05 📥 Download PDF (621.97kb)
Page 2 of SESMC05 Page 3 of SESMC05

SESMC05 Application

  • Applications such as portable electronics and SMART phones. It is rated at 350 Watts for an 8/20µs waveshape. The SESMCxx meets IEC 61000-4-2 (ESD)
