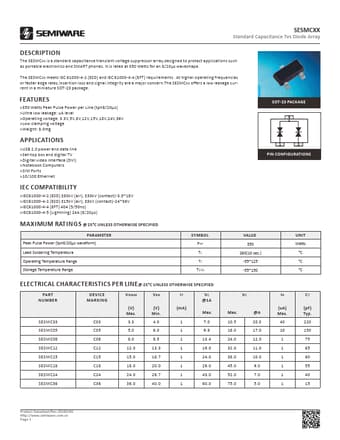

SESMC15 Standard Capacitance Tvs Diode Array

The SESMCxx is a standard capacitance transient voltage suppressor array,designed to protect applications such as portable electronics and SMART phones. It is rated at 350 Watts for an 8/20µs waveshape. The SESMCxx meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements . At higher operating.

SESMC15 Features

* >350 Watts Peak Pulse Power per Line (tp=8/20µs) >Ultra low leakage: uA level >Operating voltage: 3.3V,5V,8V,12V,15V,18V,24V,36V >Low clamping voltage >Weight: 8.0mg SOT-23 PACKAGE APPLICATIONS >USB 2.0 power and data line >Set-top box and digital TV >Digital video interface (DVI) >Notebook Comput
