SW-TS05A-LF - Surge & ESD Protection Device

SEMIWILL

The SW-TS05A-LF by SEMIWILL is a Surge & ESD Protection Device. Below is the official datasheet preview.

📥 Download Datasheet

SW-TS05A-LF Surge & ESD Protection Device by SEMIWILL - Datasheet Preview — Official preview page of the **SW-TS05A-LF** Surge & ESD Protection Device datasheet (SEMIWILL).

Datasheet Details

Part number	SW-TS05A-LF
Manufacturer	SEMIWILL
File Size	123.71 KB
Description	Surge & ESD Protection Device
Datasheet	SW-TS05A-LF-SEMIWILL.pdf

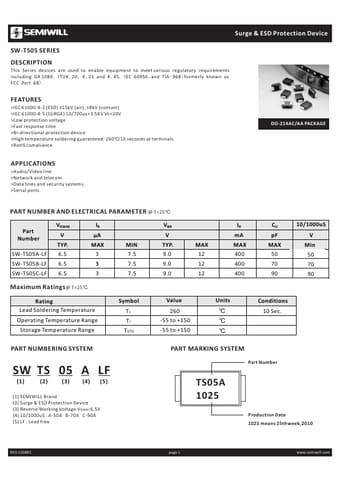

Additional preview pages of the SW-TS05A-LF datasheet.

SW-TS05A-LF Product details

Description

This Series devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITUK.20, K.21 and K.45, IEC 60950,and TIA-968(formerly known as FCC Part 68).

Features

>IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) >IEC 61000-4-5 (SURGE) 10/700us>3.5KV VcLow protection voltage >Fast response time >Bi-directional protection device >High temperature soldering guaranteed: 260℃/10 seconds at terminals >RoHS compliance DO-214AC/AA.
