SW-TS05C-LF, SW-TS05A-LF Datasheet - SEMIWILL

SW-TS05C-LF Surge & ESD Protection Device

SW-TS05C-LF Features

* >IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) >IEC 61000-4-5 (SURGE) 10/700us>3.5KV VcLow protection voltage >Fast response time >Bi-directional protection device >High temperature soldering guaranteed: 260℃/10 seconds at terminals >RoHS compliance DO-214AC/AA PACKAGE APPLICATIONS >Audio/

SW-TS05A-LF-SEMIWILL.pdf

This datasheet PDF includes multiple part numbers: SW-TS05C-LF, SW-TS05A-LF. Please refer to the document for exact specifications by model.

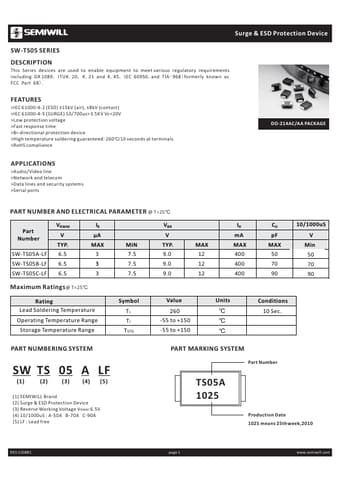

SW-TS05C-LF Datasheet Preview Page 2 SW-TS05C-LF Datasheet Preview Page 3

Datasheet Details

Part number:

SW-TS05C-LF, SW-TS05A-LF

Manufacturer:

SEMIWILL

File Size:

123.71 KB

Description:

Surge & esd protection device.

Note:

This datasheet PDF includes multiple part numbers: SW-TS05C-LF, SW-TS05A-LF.
Please refer to the document for exact specifications by model.
