MMBTSA1365 Datasheet - SEMTECH ELECTRONICS

MMBTSA1365 - NPN Transistor

MMBTSA1365 PNP Silicon Epitaxial Planar Transistor for high current drive application The transistor is subdivided into three groups E, F and G according to its DC current gain.

www.DataSheet4U.com SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Peak Collector Current Power Dissipation Junction Temperature Storage Temperature Range Symbol -VCBO -VCEO -VEBO -IC -ICM Ptot Tj TS Value

MMBTSA1365_SEMTECHELECTRONICS.pdf

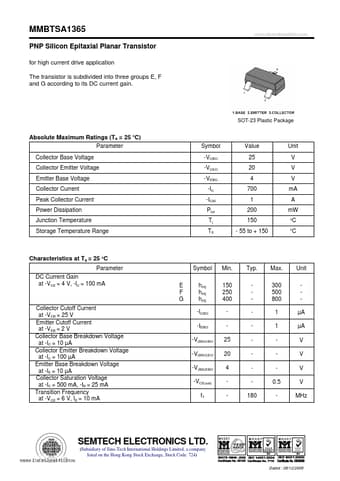

Preview of MMBTSA1365 PDF
MMBTSA1365 Datasheet Preview Page 2

Datasheet Details

Part number:

MMBTSA1365

Manufacturer:

SEMTECH ELECTRONICS

File Size:

168.90 KB

Description:

Npn transistor.
