MMBT1015 - LOW FREQUENCY PNP AMPLIFIER TRANSISTOR

MMBT1015 Description

UNISONIC TECHNOLOGIES CO., LTD MMBT1015 PNP SILICON TRANSISTOR LOW FREQUENCY PNP AMPLIFIER TRANSISTOR * .
, at any time and without notice.

MMBT1015 Features

* Collector-Emitter Voltage: BVCEO= -50V
* Collector current up to 150mA
* High hFE linearity
* Complement to MMBT1815
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package MMBT1015L-x-AC3-R MMBT1015G-x-AC3-R SOT-113 MMBT1015L-x-AE3-R MMBT1015G-x-AE3-R

📥 Download Datasheet

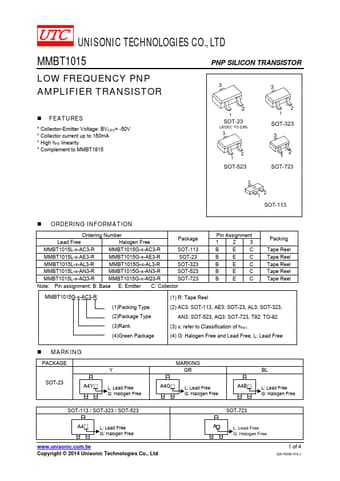

Preview of MMBT1015 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBT1015
Manufacturer
UTC
File Size
190.84 KB
Datasheet
MMBT1015_UTC.pdf
Description
LOW FREQUENCY PNP AMPLIFIER TRANSISTOR
