MMBT1616A - NPN Transistor

MMBT1616A Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD JC(T SOT-23 Plastic-Encapsulate Transistors MMBT1616A TRANSISTOR (NPN) .

MMBT1616A Features

* z Audio frequency power amplifier z Medium speed switching SOT
* 23 MARKING:16A MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 6V IC Collector Current PC C

📥 Download Datasheet

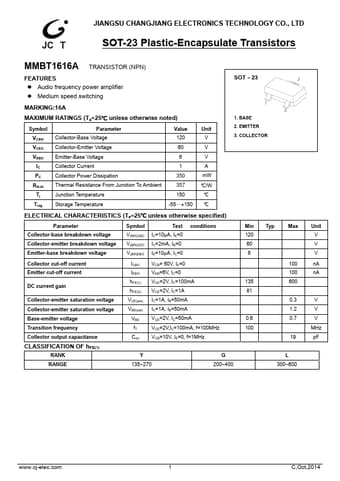

Preview of MMBT1616A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBT1616A
Manufacturer
JCET
File Size
0.97 MB
Datasheet
MMBT1616A-JCET.pdf
Description
NPN Transistor
