MMBT1116 - PNP TRANSISTOR

Product Overview

📥 Download Datasheet

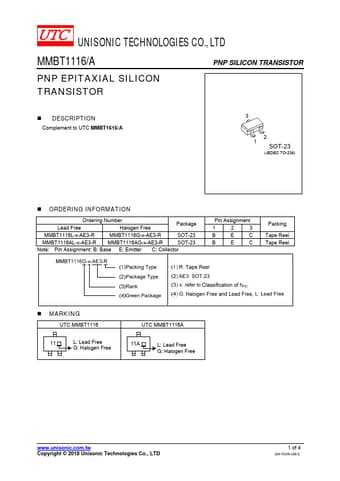

Datasheet preview – MMBT1116

Datasheet Details

Part number MMBT1116
Manufacturer UTC
File Size 279.97 KB
Description PNP TRANSISTOR
Datasheet download datasheet MMBT1116 Datasheet
Additional preview pages of the MMBT1116 datasheet.

Product details

Description

Complement to UTC MMBT1616/A 3 2 1 SOT-23 (JEDEC TO-236) ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package MMBT1116L-x-AE3-R MMBT1116G-x-AE3-R SOT-23 MMBT1116AL-x-AE3-R MMBT1116AG-x-AE3-R SOT-23 Note: Pin Assignment: B: Base E: Emitter C: Collector Pin Assignment 123 BEC BEC Packing Tape Reel Tape Reel MARKING UTC MMBT1116 11 L: Lead Free G: Halogen Free UTC MMBT1116A 11A L: Lead Free G: Halogen Free www.unisonic.com.tw Copyright © 2018 Unisonic Tec
