ST2N5088 Datasheet - SEMTECH ELECTRONICS

ST2N5088 NPN Silicon Epitaxial Planar Transistor

ST 2N5088 / 2N5089 www.DataSheet4U.com NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into one group according to it DC current gain. As complementary type the PNP transistor ST 2N5086 and ST 2N5087 are recommended. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector.

ST2N5088_SEMTECHELECTRONICS.pdf

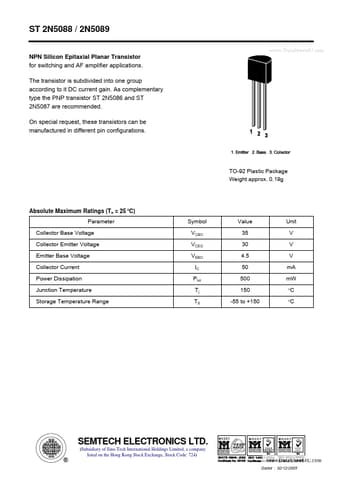

Preview of ST2N5088 PDF
ST2N5088 Datasheet Preview Page 2 ST2N5088 Datasheet Preview Page 3

Datasheet Details

Part number:

ST2N5088

Manufacturer:

SEMTECH ELECTRONICS

File Size:

376.17 KB

Description:

Npn silicon epitaxial planar transistor.
