ST2N5550 Datasheet - SEMTECH ELECTRONICS

ST2N5550 NPN Silicon Epitaxial Planar Transistor

ST 2N5550 / 2N5551 NPN Silicon Epitaxial Planar Transistors www.DataSheet4U.com for general purpose, high voltage amplifier applications. As complementary types the PNP transistors ST 2N5400 and ST 2N5401 are recommended. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Power.

ST2N5550_SEMTECHELECTRONICS.pdf

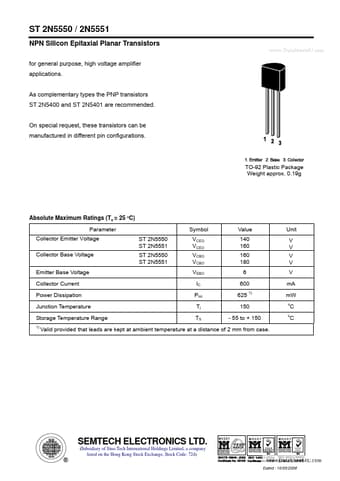

Preview of ST2N5550 PDF
ST2N5550 Datasheet Preview Page 2 ST2N5550 Datasheet Preview Page 3

Datasheet Details

Part number:

ST2N5550

Manufacturer:

SEMTECH ELECTRONICS

File Size:

250.71 KB

Description:

Npn silicon epitaxial planar transistor.
