STZ8300C, STZ8000 - SILICON PLANAR ZENER DIODES

SEMTECH ELECTRONICS

📥 Download Datasheet

STZ8300C Datasheet Preview — This datasheet PDF includes multiple part numbers: STZ8300C, STZ8000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STZ8300C, STZ8000
Manufacturer	SEMTECH ELECTRONICS
File Size	323.54 KB
Description	SILICON PLANAR ZENER DIODES
Datasheet	STZ8000_SEMTECHELECTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: STZ8300C, STZ8000. Please refer to the document for exact specifications by model.

STZ8300C Product details

Description

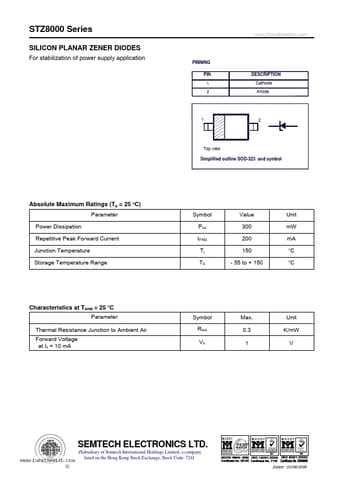

Cathode Anode 1 2 Top view Simplified outline SOD-323 and symbol Absolute Maximum Ratings (Ta = 25 OC) Parameter Power Dissipation Repetitive Peak Forward Current Junction Temperature Storage Temperature Range Symbol Ptot IFRM Tj TS Value 300 200 150 - 55 to + 150 Unit mW mA O C C O Characteristics at Tamb = 25 OC Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 10 mA Symbol RthA VF Max.0.3 1 Unit K/mW V SEMTECH ELECTRONICS LTD.(Subsidiary of Semtech Interna
