24BSA, 24BS Datasheet - SEMTECH

24BSA SILICON PLANAR ZENER DIODES

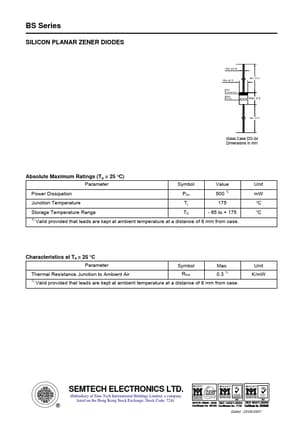

BS Series SILICON PLANAR ZENER DIODES Max. 0.45 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. XXX Max. 2.9 Min. 27.5 Glass Case DO-34 Dimensions in mm Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Power Dissipation Ptot 500 1) Junction Temperature Tj 175 Storage Temperature Range TS - 65 to + 175 1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case. Unit mW OC OC Characteristics at Ta = 25 OC Parameter Symbol Ma.

24BS-SEMTECH.pdf

This datasheet PDF includes multiple part numbers: 24BSA, 24BS. Please refer to the document for exact specifications by model.
24BSA Datasheet Preview Page 2 24BSA Datasheet Preview Page 3

Datasheet Details

Part number:

24BSA, 24BS

Manufacturer:

SEMTECH

File Size:

340.22 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 24BSA, 24BS.
Please refer to the document for exact specifications by model.
