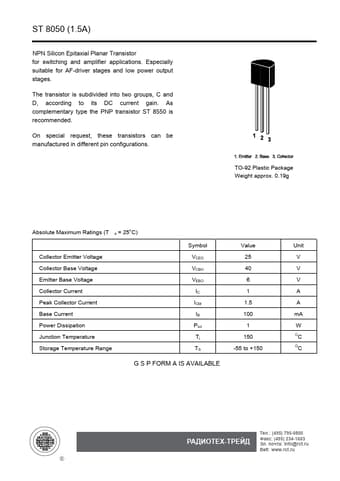

ST 8050 (1.5A)
NPN Silicon Epitaxial Planar Transistor for switching and amplifier applications. Especially suitable for AF-driver stages and low power output stages.
The transistor is subdivided into two groups, C and D, according to its DC current gain. As complementary type the PNP transistor ST 8550 is recommended.
On special request, these transistors can be manufactured in different pin configurations.
TO-92 Plastic Package Weight approx. 0.19g
Absolute Maximum Ratings (T a = 25oC)
Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Peak Collector Current Base Current Power Dissipation Junction Temperature Storage Temperature Range
Symbol VCEO VCBO VEBO IC ICM IB Ptot Tj TS
G S P FORM A IS AVAILABLE
Value 25 40 6 1 1.
