BZX55C160 SILICON PLANAR ZENER DIODES

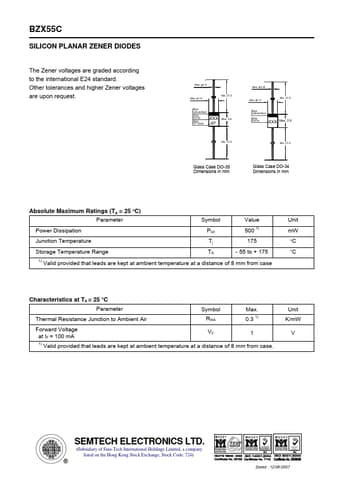

BZX55C SILICON PLANAR ZENER DIODES The Zener voltages are graded according to the international E24 standard. Other tolerances and higher Zener voltages are upon request. Max. 0.5 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. Black "ST" Brand XXX ST Max. 3.9 Min. 27.5 Max. 0.45 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. XXX Max. 2.9 Min. 27.5 Glass Case DO-35 Dimensions in mm Glass Case DO-34 Dimensions in mm Absolute Maximum Ratings (Ta = 25 OC) Parameter Symb.
