BZX84C68SEW SILICON PLANAR ZENER DIODES

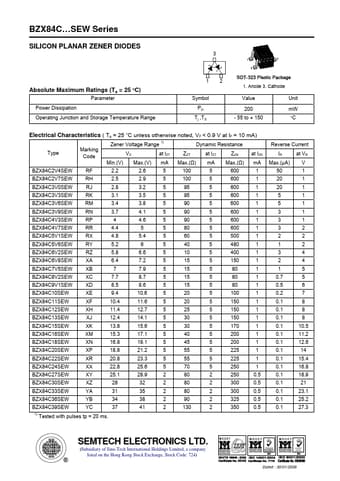

BZX84C…SEW Series SILICON PLANAR ZENER DIODES 3 Absolute Maximum Ratings (Ta = 25 OC) Parameter Power Dissipation Operating Junction and Storage Temperature Range 12 1. Anode 3. Cathode Symbol PD Tj ,TS Value 200 - 55 to + 150 Unit mW OC Electrical Characteristics ( Ta = 25 OC unless otherwise noted, VF < 0.9 V at IF = 10 mA) Type Marking Code Zener Voltage Range 1) VZ at lZT Dynamic Resistance ZZT at lZT ZZK at IZK Min.(V) Max.(V) mA Max.(Ω) mA Max.(Ω) mA BZX84C2V4SEW RF 2.2 2.

BZX84C2V4SEW-SEMTECH.pdf

BZX84C68SEW Datasheet Preview — This datasheet PDF includes multiple part numbers: BZX84C68SEW, BZX84C2V4SEW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BZX84C68SEW, BZX84C2V4SEW

Manufacturer:

SEMTECH

File Size:

189.29 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: BZX84C68SEW, BZX84C2V4SEW.
Please refer to the document for exact specifications by model.
