DF10

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

DF10 Features

* Glass passivated chip junction

* Low forward voltage drop

* High surge overload rating of 50 Amperes peak

* Ideal for printed circuit board Mechanical Data

* Case: Molded plastic, DB

* Epoxy: UL 94V-0 rate flame retardant

* Terminals: Leads solderable per MIL-STD-202,

DF10 Datasheet (333.22 KB)

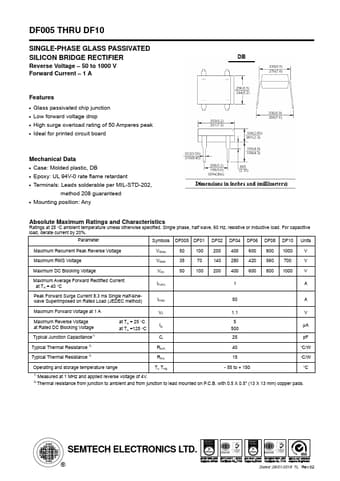

Preview of DF10 PDF

Datasheet Details

Part number:

DF10

Manufacturer:

SEMTECH

File Size:

333.22 KB

Description:

Single-phase glass passivated silicon bridge rectifier.
