RS1JF, RS1AF Datasheet - SEMTECH

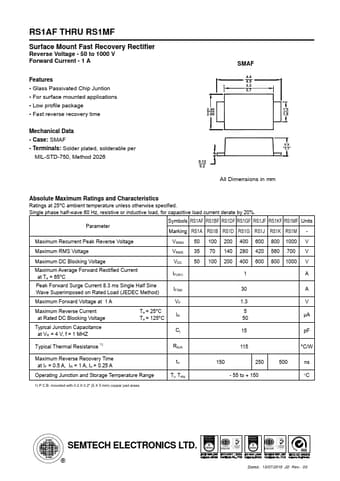

RS1JF Surface Mount Fast Recovery Rectifier

RS1JF Features

* Glass Passivated Chip Juntion

* For surface mounted applications

* Low profile package

* Fast reverse recovery time Mechanical Data

* Case: SMAF

* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 SMAF 4.4 4.9 3.3 3.7 2.40 2.80 1.3

Datasheet Details

RS1JF, RS1AF

SEMTECH

300.00 KB

Surface mount fast recovery rectifier.

This datasheet PDF includes multiple part numbers: RS1JF, RS1AF.
Please refer to the document for exact specifications by model.
