RS3BBF, RS3ABF - Surface Mount Fast Recovery Rectifier

RS3BBF Description

RS3ABF THRU RS3MBF Surface Mount Fast Recovery Rectifier Reverse Voltage - 50 to 1000 V Forward Current - 3 A .

RS3BBF Features

* Glass Passivated Chip Juntion

RS3BBF Applications

* Low profile package
* Fast reverse recovery time SMBF 5.5 5.1 4.4 4.2 3.7 3.5 2.2 1.9 Mechanical Data
* Case: SMBF
* Terminals: Solderable per 1.3 1.1 MIL-STD-750, Method 2026 0.26 0.18 All Dimensions in mm Absolute Maximum Ratings and Characteristics Rating

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3BBF, RS3ABF. Please refer to the document for exact specifications by model.

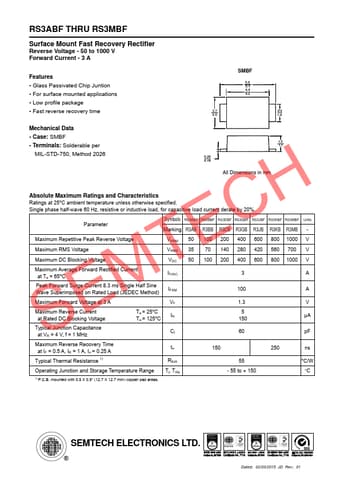

datasheet Preview Page 2

Datasheet Details

Part number
RS3BBF, RS3ABF
Manufacturer
SEMTECH
File Size
772.17 KB
Datasheet
RS3ABF-SEMTECH.pdf
Description
Surface Mount Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: RS3BBF, RS3ABF.
Please refer to the document for exact specifications by model.
