S5B Surface Mount General Rectifiers

S5B Description

S5A THRU S5M Surface Mount General Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 5 A .

S5B Features

* The plastic package carries Underwrites Laboratory flammability classification 94V-0

S5B Applications

* Low reverse leakage
* Built-in strain relief, ideal for automated placement
* High forward surge current capability Mechanical Data
* Case: JEDEC DO-214AB molded plastic body
* Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

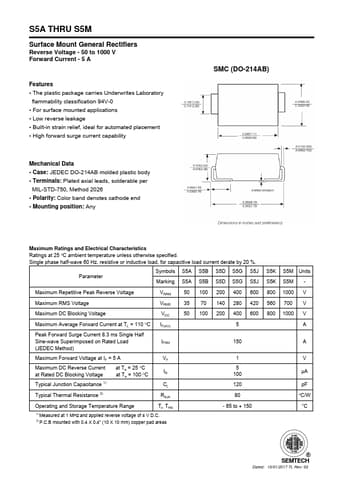

Preview of S5B PDF
datasheet Preview Page 2

Datasheet Details

Part number
S5B
Manufacturer
SEMTECH
File Size
331.24 KB
Datasheet
S5B-SEMTECH.pdf
Description
Surface Mount General Rectifiers
