SB3100, SB320 SCHOTTKY BARRIER RECTIFIERS

SB3100 Description

SB320 THRU SB3100 SCHOTTKY BARRIER RECTIFIERS Reverse Voltage * 20 to 100 V Forward Current * 3 A .

SB3100 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* High surge capability
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* For us

SB3100 Applications

* Mechanical Data
* Case: JEDEC DO-201AD molded plastic body
* Terminals: Plated axial leads, solderable per MIL-STD-750, method 2026
* Polarity: color band denotes cathode end Absolute Maximum Ratings and Characteristics Ratings at 25 OC ambient temperature unless otherwise

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3100, SB320. Please refer to the document for exact specifications by model.

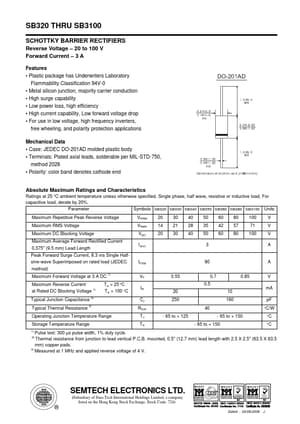

datasheet Preview Page 2

Datasheet Details

Part number
SB3100, SB320
Manufacturer
SEMTECH
File Size
151.24 KB
Datasheet
SB320-SEMTECH.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB3100, SB320.
Please refer to the document for exact specifications by model.
