ST9012 PNP Silicon Epitaxial Planar Transistor

www.DataSheet4U.com ST 9012 PNP Silicon Epitaxial Planar Transistor for switching and amplifier applications. Especially suitable for AF-driver stages and low power output stages. The transistor is subdivided into three groups, G, H and I, according to its DC current gain. As complementary type the NPN transistor 9013 is recommended. 1. Emitter 2. Base 3. Collector TO-92 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter B.

ST9012 Datasheet (278.03 KB)

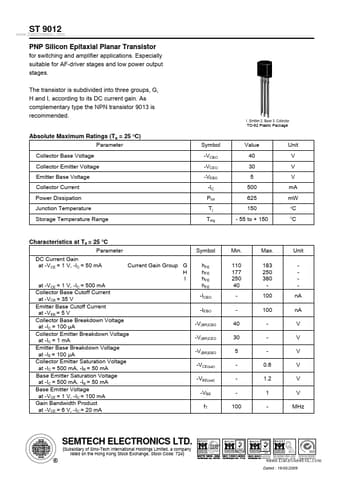

ST9012 Datasheet Preview — Preview of ST9012 PDF

Datasheet Details

Part number:

ST9012

Manufacturer:

SEMTECH

File Size:

278.03 KB

Description:

Pnp silicon epitaxial planar transistor.
