ST9015 PNP Silicon Epitaxial Planar Transistor

www.DataSheet4U.com ST 9015 PNP Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into four groups, A, B, C and D, according to its DC current gain. As complementary type the NPN transistor ST 9014 is recommended. 1. Emitter 2. Base 3. Collector TO-92 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temper.

ST9015 Datasheet (177.08 KB)

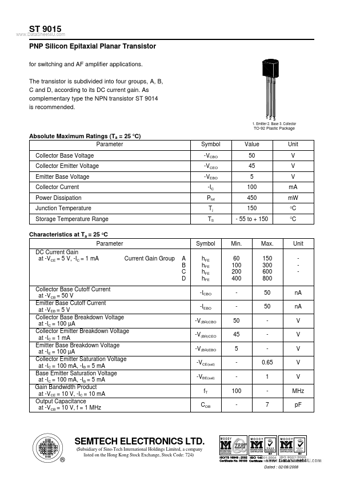

ST9015 Datasheet Preview — Preview of ST9015 PDF

Datasheet Details

Part number:

ST9015

Manufacturer:

SEMTECH

File Size:

177.08 KB

Description:

Pnp silicon epitaxial planar transistor.
