ZMC11UDZB Datasheet, Diodes, SEMTECH

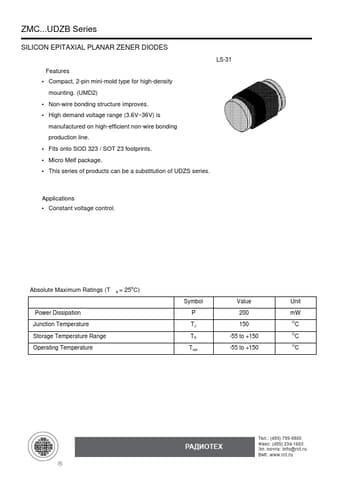

ZMC11UDZB Features

• Diodes
• Compact, 2-pin mini-mold type for high-density LS-31 mounting. (UMD2)
• Non-wire bonding structure improves.
• High demand voltage range (3.6V~36V) is manu

PDF File Details

Part number:

ZMC11UDZB

Manufacturer:

SEMTECH

File Size:

167.71kb

Download:

📄 Datasheet

Description:

Silicon epitaxial planar zener diodes.

ZMC11UDZB Application

• Applications
• Constant voltage control. Absolute Maximum Ratings (T a = 25oC) Power Dissipation Junction Temperature Storage Temperature R
