2W02, 2W005 2.0A Single-Phase Silicon Bridge Rectifier

Description

SEP ELECTRONIC CORP.2W005 thru 2W10 2.0 A Single-Phase Silicon Bridge Rectifier Rectifier Reverse Voltage 50 to 1000V WOB 8.85+0.5 .

📥 Download Datasheet

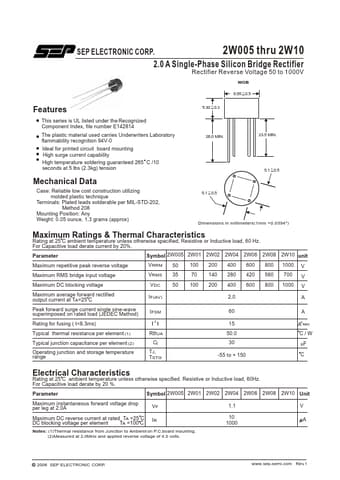

2W02 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2W02, 2W005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2W02, 2W005
Manufacturer: SEP ELECTRONIC
File Size: 61.33 KB
Datasheet: 2W005-SEPELECTRONIC.pdf
Description: 2.0A Single-Phase Silicon Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: 2W02, 2W005.
Please refer to the document for exact specifications by model.

Features

* 5.30+0.3 This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Ideal for printed circuit board mounting High surge current capability High temperature soldering guaranteed 265 C /1
