BY134 - 1.0A Miniature Rectifier

This page provides the datasheet information for the BY134, a member of the BY133 1.0A Miniature Rectifier family.

Datasheet Summary

Features

  • Diffused junction High current capability and low Forward Voltage Drop Surge overload rating to 30A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: Cathode band Mounting Position: Any Weight: 0.3grams (approx) 1.0(25.4) MIN 205(5.2) 160(4.1) 1.0(25.4) MIN .034(.86) .028(.71) .107(2.7) .080(2.0) All dimensions inches and (millimeters) Maximu.

📥 Download Datasheet

Datasheet preview – BY134

Datasheet Details

Part number BY134
Manufacturer SEP ELECTRONIC
File Size 26.03 KB
Description 1.0A Miniature Rectifier
Datasheet download datasheet BY134 Datasheet

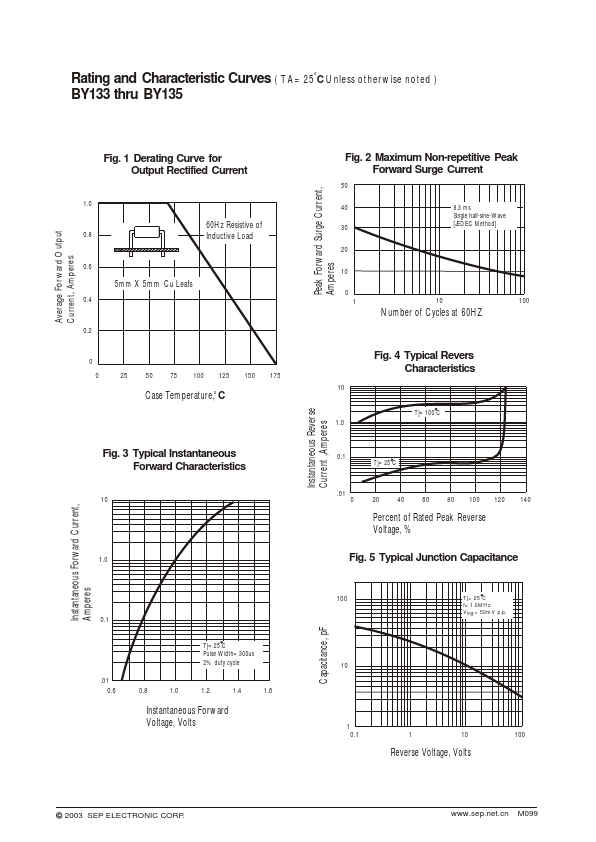

Additional preview pages of the BY134 datasheet.

📁 Similar Datasheet

  • BY134 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
  • BY133 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - SILICON RECTIFIER DIODES (EIC)
  • BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
Other Datasheets by SEP ELECTRONIC
  • BY133 - 1.0A Miniature Rectifier
  • BY135 - 1.0A Miniature Rectifier

Full PDF Text Transcription

Click to expand full text

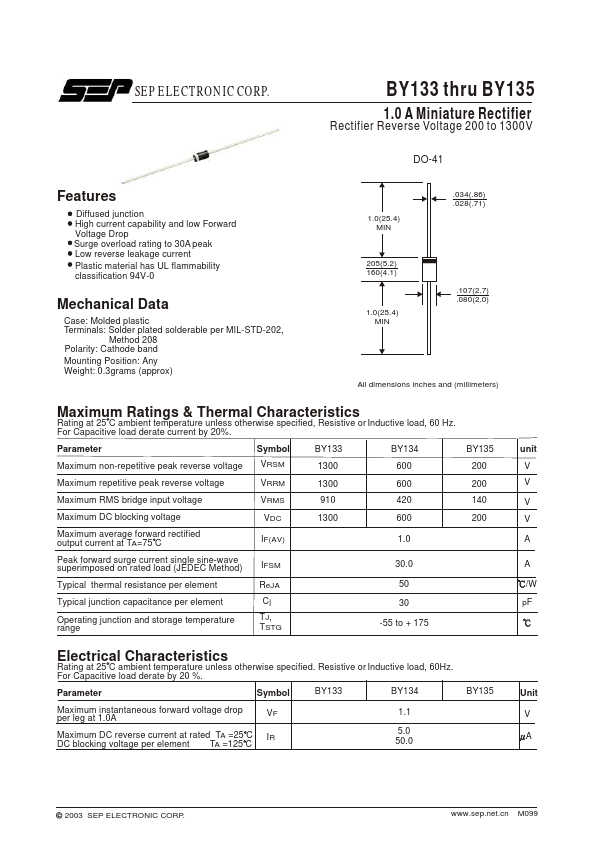

SEP ELECTRONIC CORP. BY133 thru BY135 1.0 A Miniature Rectifier Rectifier Reverse Voltage 200 to 1300V DO-41 Features Diffused junction High current capability and low Forward Voltage Drop Surge overload rating to 30A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: Cathode band Mounting Position: Any Weight: 0.3grams (approx) 1.0(25.4) MIN 205(5.2) 160(4.1) 1.0(25.4) MIN .034(.86) .028(.71) .107(2.7) .080(2.0) All dimensions inches and (millimeters) Maximum Ratings & Thermal Characteristics Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%.
